When buyers search for 395nm LED UV curing lamp products, they often notice a confusing price gap. Small handheld 395nm UV flashlights can be purchased at a very low cost, while industrial large‑luminous‑surface LED UV curing lamps for assembly‑line production cost many times more, even though both devices emit ultraviolet light at the same 395 nm wavelength. This massive price difference does not come from simple size differences, but from completely different design goals, energy‑output performance and industrial‑grade curing capabilities.

A 395nm UV flashlight is designed for simple inspection work. It uses a small‑size single LED bead with low power output. Its main purposes include leak detection, resin checking, counterfeit identification and casual lab testing. These handheld tools produce scattered, low‑density ultraviolet rays. Even if you shine the flashlight onto UV ink or UV glue for a long time, the light energy will not reach the high energy density required for complete photopolymerization. You may get a dry‑looking surface, but the inner layer of adhesive or ink will remain uncured, with poor bonding strength and unstable finished quality. Flashlights are never built for continuous, long‑hour industrial curing tasks.

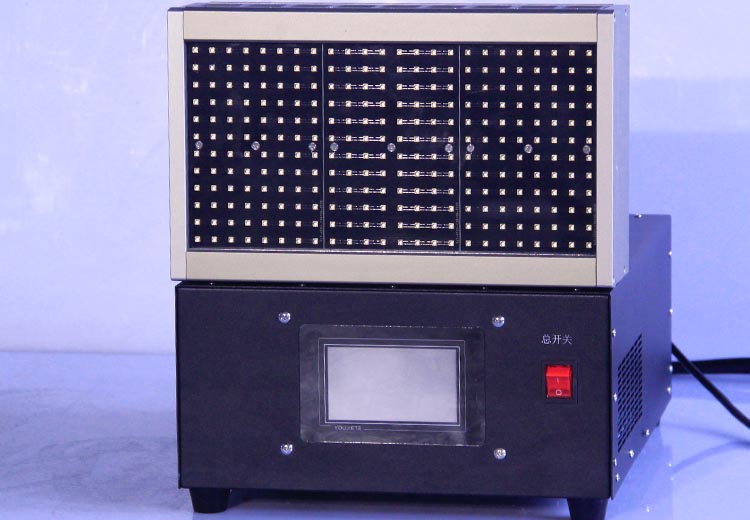

In contrast, large luminous‑surface LED UV curing lamp heads are engineered specifically for automated conveyor‑line mass production. These industrial lamps integrate dozens or hundreds of high‑quality UV LED beads, arranged precisely to form a wide, uniform irradiation zone. The first irreplaceable advantage of a large lamp head is even UV‑energy distribution across the whole luminous area. Every part of your printed workpiece receives the exact same ultraviolet dose. There will be no weak‑energy dead zones that cause partial, incomplete curing, a common defect when using small UV flashlights for large‑sized parts.

High, stable energy density is another core benefit that small‑size UV flashlights cannot match. Industrial large‑area 395nm LED UV curing lamps deliver concentrated, high‑power UV output. They can cure UV glue and screen‑printing UV ink in just 1‑2 seconds as products pass beneath the lamp on a fast‑moving production line. Handheld flashlights lack enough instantaneous energy, so they would require many seconds or even minutes of exposure to achieve curing, which completely breaks the rhythm of high‑speed automated manufacturing.

Continuous long‑time working performance sets large‑area industrial UV curing lamps far apart from consumer‑grade UV torches. Small flashlights are built for short‑time, intermittent use. Their simple heat‑dissipation structure cannot withstand hours of non‑stop operation. After several minutes of lighting, their LED chips will overheat, UV energy will drop sharply, and the service life of the bead will shorten greatly. Large luminous‑surface LED UV curing lamps are equipped with professional air‑cooled or water‑cooled cooling systems. The cooling design keeps lamp‑head temperature steady even when running 24‑hours a day, maintaining consistent UV energy output day after day for continuous‑flow production lines.

Flexible installation and production‑line compatibility make big UV lamp heads irreplaceable for factory automation. Industrial‑grade large lamp‑heads are designed with standard mounting structures, so they can be fixed above conveyor belts, screen‑printing machines and automatic dispensing equipment. The wide irradiation width covers the full processing area of your products in one single pass. You do not need to move the light source back and forth to cover every section of the workpiece, which would create uneven curing and slow‑down production. For batch‑processing, one‑pass full‑area irradiation from a large luminous‑surface UV lamp greatly improves workflow efficiency.

Precise energy‑adjustment function is another feature rarely found on cheap UV flashlights. Most handheld 395 nm flashlights have fixed power with no way to tune UV intensity. Industrial large LED UV curing lamps allow operators to adjust UV energy output according to ink thickness, glue layer depth and material heat resistance. This tunable feature helps factories avoid over‑curing, ink yellowing or thermal damage on heat‑sensitive plastic products.

To sum up, even though both a cheap 395nm UV flashlight and a large‑area industrial LED UV curing lamp emit 395‑nanometer ultraviolet light, they belong to two completely different product categories. Hand‑held flashlights work well for inspection jobs, yet they cannot replace large luminous‑surface UV lamp heads on industrial curing production lines. Wide uniform irradiation area, high stable energy density, reliable long‑hour cooling performance, conveyor‑line installation compatibility and adjustable power output are the irreplaceable strengths of industrial large‑size LED UV curing lamps for high‑quality, high‑speed UV curing mass production.
