Introduction

Dark inks are the stress test of any UV curing system. Black, navy, deep violet, and rich brown formulations carry heavy pigment loads. Those pigments absorb UV energy before it can fully reach the photoinitiators. The result is familiar: tacky surfaces, weak adhesion, set-off, blocking, and low yield. High-energy UV output changes that equation. When peak irradiance and total dose are matched to the ink chemistry, dark inks can cure through in a single pass. Production becomes faster, cleaner, and far more predictable.

Why Dark Inks Resist UV Curing

Dark inks are not simply “harder” to cure. They compete for UV light. Carbon black and other dense pigments absorb UV photons across a broad spectrum. The thicker the ink film, the more energy is lost before the lower layers receive enough light. Oxygen inhibition adds another barrier at the surface. If the UV system delivers too little peak intensity, the ink may look dry on top while remaining soft underneath. That hidden undercure often appears later as poor rub resistance, delamination, or blocked stacks.

What High-Energy UV Output Really Means

High-energy UV output is not just a higher power number. It is the combination of peak irradiance and total dose delivered at the right wavelength. Peak irradiance drives through-cure; total dose supports chemical conversion. Wavelength matters because photoinitiators respond differently at 365 nm, 385 nm, 395 nm, and 405 nm. Uniform UV fields, efficient optics, and stable cooling also matter. A hot spot may cure one area while leaving another underdone. For dark inks, consistency across the web or sheet is as important as raw power.

One-Pass Drying: The Goal, Not a Slogan

One-pass drying means the ink reaches full through-cure at production speed, without a second pass, offline drying, or extended delay. The surface should not merely be tack-free. The ink should pass adhesion, rub, chemical, and migration tests. One-pass curing reduces work in progress, prevents set-off, and protects fine detail. It also gives operators a wider process window, which is critical when jobs change from light pastels to dense blacks within the same shift.

How High UV Energy Raises Yield

Yield improves when every printed sheet or label is fully cured the first time. Fewer rejects mean less rework, less waste, and fewer unplanned stoppages. Stable curing also protects color consistency, dot sharpness, and stackability. In high-volume environments, the real gain is not only speed. It is the number of good units produced per hour. High-energy UV output helps printers increase overall equipment effectiveness while reducing energy waste per acceptable print.

Critical Variables to Control

Several variables decide whether dark ink dries in one pass. Ink chemistry must match the UV spectrum. Photoinitiator packages, monomers, oligomers, and pigment loading all influence cure speed. Substrate heat sensitivity limits how much energy can be applied. Ink thickness must be controlled because a heavier film demands more dose. Lamp distance, reflector design, belt speed, and nitrogen inerting also change results. Finally, temperature control protects both the substrate and the UV system. One-pass curing is a system result, not a single component.

UV LED vs Traditional Mercury

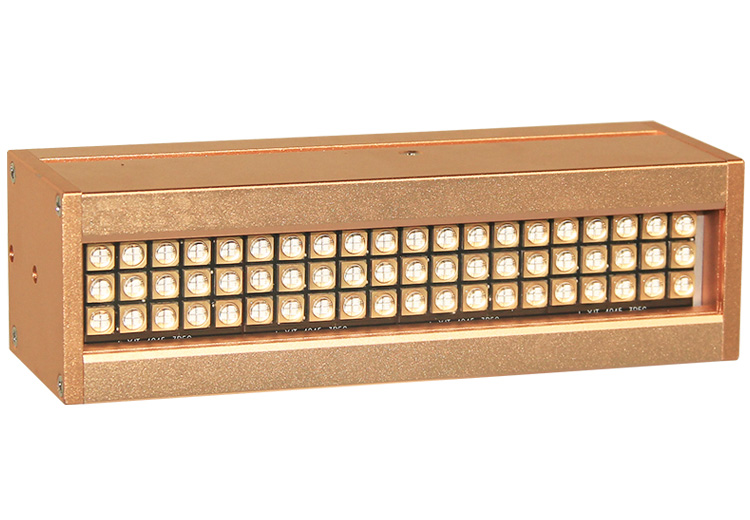

UV LED systems offer instant on/off, long life, lower heat, and narrow wavelength output. Mercury lamps provide broadband UV and deep UV content, but they generate heat, ozone, and higher maintenance needs. For dark inks, high-power UV LED arrays at a matched wavelength can deliver excellent through-cure when the ink is formulated correctly. Hybrid systems may also be useful in challenging applications. The best choice depends on substrate, ink, speed, and quality requirements.

Practical Checklist for Dark Ink One-Pass Curing

Use a calibrated radiometer to measure peak irradiance and dose. Run a dose-response ladder at the heaviest ink laydown and highest production speed. Test cross-hatch adhesion, tape pull, MEK rub, scratch resistance, and migration where required. Keep UV optics clean and monitor lamp aging. Confirm that cooling keeps substrate temperature within safe limits. Validate the process at the start, middle, and end of a run. These steps turn high-energy UV output into a repeatable production advantage.

Applications

High-energy UV output is valuable for labels, tags, flexible packaging, folding cartons, tubes, industrial inkjet, coding, and marking. It is especially useful when deep colors must be printed on heat-sensitive films or when dark ink coverage is heavy. Printers can run faster, reduce waste, and deliver sharper results without sacrificing adhesion or durability.

Conclusion

High-energy UV output is more than a technical specification. It is a production strategy. It allows dark inks to dry in one pass, protects print quality, and lifts yield across demanding jobs. When ink chemistry, UV wavelength, irradiance, dose, and cooling work together, deep colors stop being a bottleneck and become a reliable strength.

FAQ

Q1: Can black UV ink dry in one pass?
A: Yes, if the UV system delivers enough peak irradiance and total dose at the right wavelength, and the ink chemistry is optimized for through-cure.

Q2: What is high-energy UV output?
A: It is the combination of high peak irradiance and sufficient total UV dose, delivered uniformly and matched to the ink’s photoinitiator system.

Q3: Why is dark ink harder to cure?
A: Dark pigments absorb UV energy, thicker films block light, and oxygen can inhibit surface cure. These factors slow or prevent full through-cure.

Q4: Does high UV energy damage substrates?
A: It can if heat is not controlled. UV LED systems with efficient cooling and precise dose control help protect heat-sensitive materials.

Q5: How do I know the ink is fully cured?
A: Do not rely on touch alone. Use adhesion, rub, chemical resistance, and migration tests to confirm through-cure.
