Screen printers who decorate everyday consumer items with UV screen ink are well aware of the endless small troubles on the production line. Many workshops used mercury UV lamps for years, yet they still struggle with unstable curing results, high reject rates and material damage, especially when printing logos and graphics on a wide mix of household goods. LED UV curing lamps designed for UV ink offer a practical way to tackle these recurring screen printing headaches.

The range of daily screen printed items is diverse: cosmetic jars, plastic water cups, storage cases, stationery, promotional gifts and kitchen accessories. Substrates include ABS, PET, acrylic and low-temperature PP plastics. These materials have different heat tolerance levels, while screen printing deposits a thicker ink layer compared with other printing methods. Dark pigmented inks are even harder to cure thoroughly.

The most frequent complaint from screen printers is tacky ink after printing. Thick screen UV ink cannot fully cure if UV energy is weak or uneven. The surface stays sticky, marks easily, and ink transfers when finished products are stacked together. This ruins printed patterns and creates lots of waste. LED UV curing lamps deliver consistent 395nm UV energy that penetrates deep into thick screen ink. Parts are dry immediately after passing under the lamp. Operators can stack and pack goods straight away, with no waiting time and no ink smudging.

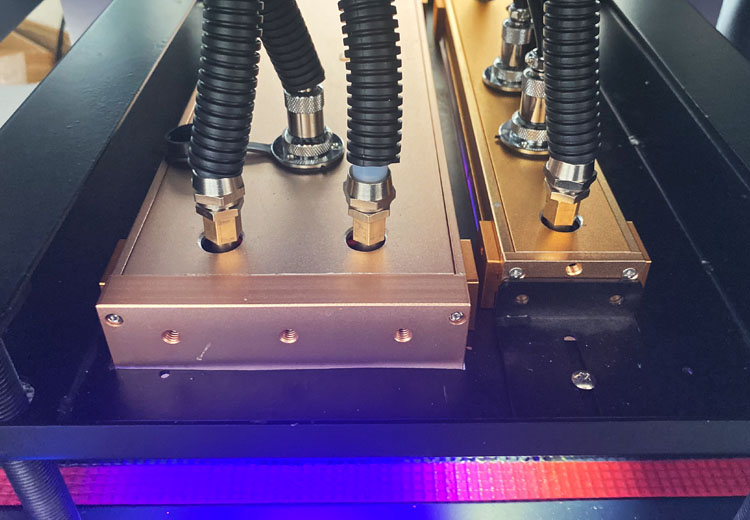

Heat damage is another major issue. Traditional mercury lamps produce large amounts of infrared heat. Thin or heat-sensitive plastic daily products often bend, shrink or discolor under high temperature. Once the workpiece deforms, it becomes scrap. LED UV curing generates very little heat. To further control temperature for sensitive substrates, many printers upgrade to water-cooled LED UV designs.

This water circulation structure keeps the lamp head cool even during nonstop production. Printers can safely print on delicate plastic substrates without worrying about thermal distortion.

Poor ink adhesion and easy scratching are common quality complaints from end buyers. When ink only cures on the surface, the printed pattern peels off after simple rubbing or cleaning. With properly matched LED UV wavelength, the screen ink cures completely from top to bottom. It forms a strong bond with the material surface. Finished patterns withstand daily friction and wiping, which is essential for reusable consumer goods like bottles and cosmetic packaging.
For mass screen printing lines running nonstop all day, stable curing across batches is critical. Mercury lamps lose UV power gradually after long running hours. The first batch and late-shift batch show obvious curing differences, forcing workers to constantly adjust line speed. LED UV lamps maintain steady UV output throughout long production shifts. Curing results stay uniform piece by piece, cutting down rejects and saving ink and substrate costs.

LED UV lamps also bring practical operational advantages for screen printing plants. Unlike mercury lamps, they have no warm-up or cool-down waiting time. Turn on the lamp and start curing right away; switch off instantly when production pauses, saving electricity. They also have a much longer service life, which means fewer lamp replacements and less downtime. No mercury inside also meets environmental requirements for consumer product manufacturing.

It is worth noting that lamp power and irradiation distance should be chosen according to your ink pigment level, ink thickness and substrate type. Dark heavy-color UV screen ink needs higher UV energy. For ultra heat-sensitive materials, water-cooled LED UV curing lamps will be the better choice.

For screen printing manufacturers producing printed daily consumer goods, LED UV curing lamps are more than just a new light source. It directly solves those stubborn production defects that used to slow down your workflow, stabilizes finished printing quality, speeds up your conveyor line and lowers your overall scrap rate.
